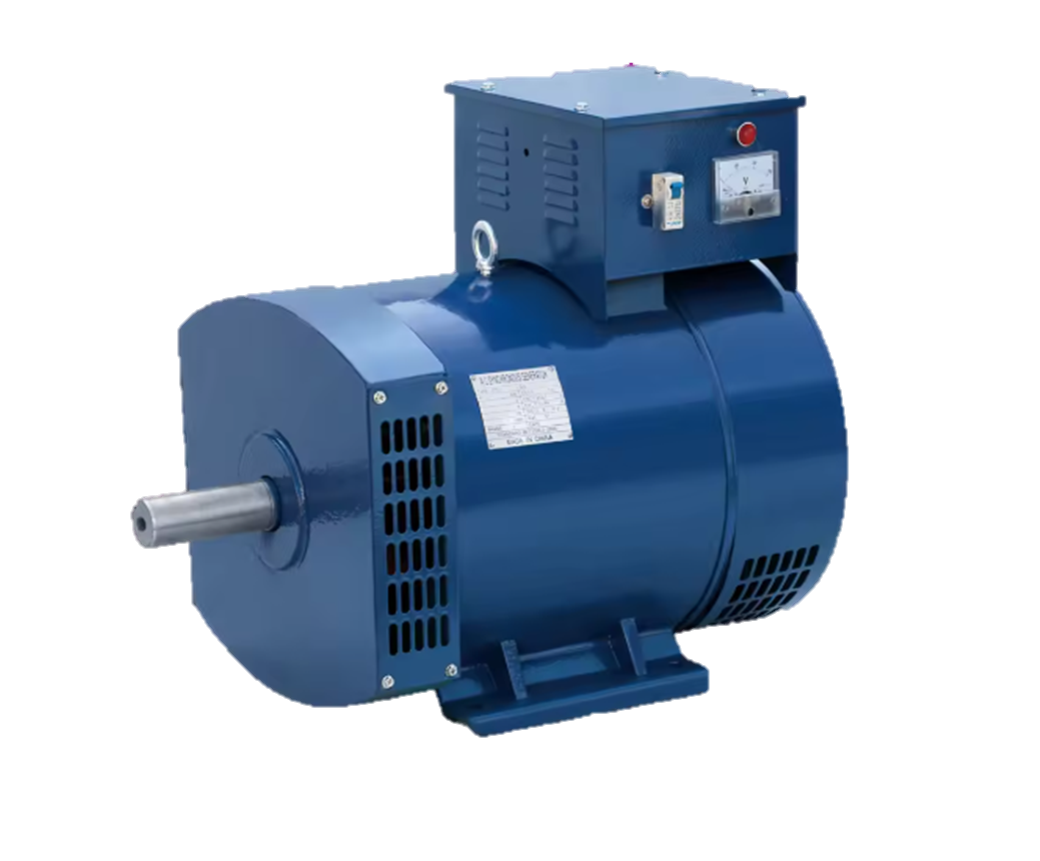

ST STC Series Brush Alternator Ac Electric Generator Set 3kw To 50kw For Family



AC Electric Generator Description:

1)  ST STC series alternators are mainly designed to serve as the power generating unit of small capacity, which supply electricity for lighting purposes in ships, for house-hold electric devices used in towns or villages.



2) The construction of the generators is of drip-proof, salient pole rotating field self-excitation and constant voltage type. The alternator interior is used with high-quality electric magnetic and electric materials. Stator insulation is class B.



3) These generators are elegant in appearance, tight in construction, and easy maintenance. IEC standard is adopted on the dimension, these dimensions are suitable for use in Australia, Europe, America and other countries with the end covers to be model B.



Applications:

STC diesel generators are to be used in town, the countryside, worksites, mountains, and pasture lands as the electric power source for lighting purposes. It can also be used as a reserved power source for emergent cases.



Environment Conditions:

Under the following environment, the generator could run continuously:

1.Altitude: not exceed 1000m.

2.Cooling air temperature: 258~313K(-15~40).

3.Relative air humidity: not exceed 90%.
