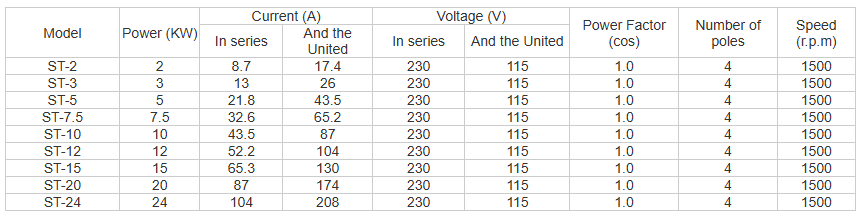

AC Electric Generator APPLICATIONS:

ST series alternator mainly used as household electricity villages or towns and small fishing boats lighting design of an alternator.



The alternator structure is drip-proof, salient pole, self-motivation constant structure of the internal use of high-quality alternators and other electrical silicon steel material of stator insulation class B class this series alternator has a beautiful appearance, reasonable structure, And easy maintenance features, while the dimensions on the use of IEC standards cover for B-type structure for Australia, Europe, America, and other countries and regions.



ALTERNATOR WITH BRUSH PRODUCT FEATURES:

(1)Easy to connect with a power network or other generators.

(2)Balanced rotor with two sealed ball bearings

(3)Convenient installation and maintenance with easy access to terminals, coupling bolts, and Brush

(4)Full power and 100% copper design alternator



AC Electric Generator MECHANICAL FEATURES:

Voltage regulation

Voltage regulation refers to the change of voltage from no-load to full-load with power factors ranging from 5 to 10 and 4%s fluctuations of the speed of an engine. Voltage is adjusted via a potentiometer of winding design or AVR.



 Axis and Key

All of the alternator rotors should pass the balance test, whose vibrations are lower than the minimum of BS6861 P.1, G 2.5 two bearing alternator has a half-key testing balance



Terminal and control box

The alternator had 4 leads brought out to the terminals in the terminal box. Output 4 wire control box with voltage meter switch and indicator light
